Products : Plasma Systems
|
Descriptions & Applications * Surface treatment by Homogeneous & Glow plasma * Low voltage, power & temperature * High uniformity, efficiency & productivity * No streamer, arc & damage * Display, (F)PCB, semiconductor, nano, MEMS, Film(Roll to Roll) fields Dental(Implant), Beauty fields * Pretreatment for bonding, molding, marking, printing, coating, painting * Surface activation, cleaning, ashing, etching & removing static electricity System Specifications * RF Power(13.56Mhz) : 300W, 600W, 1kW, 3kW (DBD Type) * MF Power(22~23Khz) : 7~8kV, ~150W (Pin & Gun Type) * Plasma Head Size : 100mm ~ 500mm (Standard) - ( > 500mm : Option) * Gas usage : Ar (O2, H2, etc.)
|
 |
Manual System * Head length : 150~200mm(Standard) * Stage : Manual * Ar, O2 control : flowmeter or MFC * Head gap adjustment : Manual * Delivery : R & D purpose |
 |

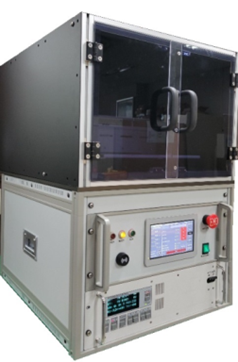

All in One System * Head length : 150~300mm(Standard) * Stage : Automatic by Motor * Ar, O2 Control : MFC * Head gap adjustment : Manual * Operation : Micom with touch screen * Delivery : liquid biopsy kit for cancer diagnosis |
  |
Modular System * Head length : 150~400mm(standard) * Stage : Customizing * Ar, O2 control : MFC * Head gap adjustment : Manual * Operation : Up to customer * Delivery : diabetes diagnosis kit |
  |
Conveyor & R To R System * Head length : 550mm(Standard) * Stage : Conveyer Belt * Motor speed & System control : PLC * Ar, O2 Control : MFC * Head gap Adjustment : Manual * Operation : touch screen |
 |

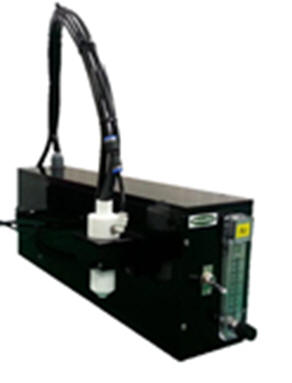

Pin Type Plasma * Low temperature plasma and focused area treatment * Handheld type plasma head * Plasma diameter : 1~2mm * Plasma length : ~15mm * Ar Flow : 1.5 slm/min * Voltage : 7~8kV * Current ; 25mA * Voltage frequency : 22~23kHz |
  |
Gun Type Plasma * Low temp. & Ozone, None electric shock * For Medical/Bio/Beauty applications * Plasma flame diameter : 1~2mm * Plasma flame length : ~10mm * Gas flow : Ar(5~8slm), O2(5~10sccm) * Output voltage : 3~4kV * Frequency : 30~120kHz * Duty : 14~50% |
  |
Implasma(Dental)

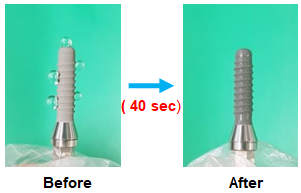

System * Application : Surface treatment of Implant * Plasma Type : Surface DBD(Tube) * Ar control & Flow : Solenoid valve & 5 slm * Input power : 24VDC, 5A * MF Voltage & frequency : ~12kV & ~50kHz |

 |

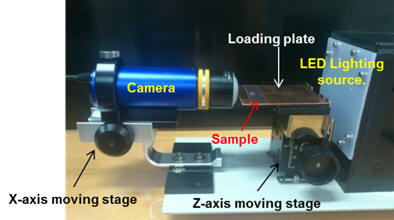

Contact Angle Test System * Simply measuring the surface modification effect after plasma treatment * Simple configuration of the manual measurement * Contact angle measurements of left and right drop images * LED light source is adopted to getting the sharp images * Generating an optimized images by adjusting the X, Z axis |
