Products : Scanner
  |

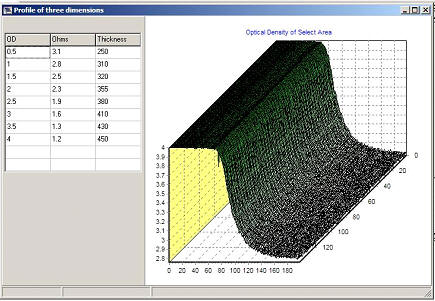

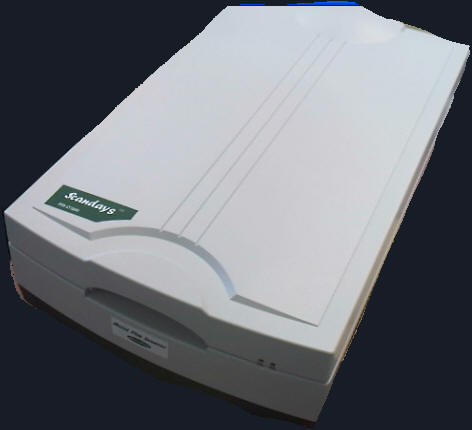

* Descriptions - High resolution optical transmission scanner for metallized thin films. - Conversion to resistance and thickness by measuring OD(optical density) of films. - Quick monitoring of optical density, resistance and thickness of thin films. - Useful tool for evaluation of metallized films. * Features - Scanner resolution : 6,400 x 3,200dpi. - Optical density : 4.0Dmax. - Scanning size : 305(W) x 405mm(L). (The wider films more than 305mm can be measured by software option.) - Simple calibration procedure. - Built-in conversion for optical density, resistance, and thickness. - Line, strip, multi-line and area scan function. - Plot the optical density, resistance, and thickness of thin film . - Display the 2D or 3D profile. - Increasing measuring accuracy by selecting user defined optical density window. - Color contour maps for scanned area. - Measurement the distance between pattern to pattern by counting pixels. * Applications - R&D, quality control and production of metallized transparent thin films. ex) Quality control for deposited metal film (Al, Zn etc.) on PP, PET substrates for metal condensor. |
